Filtration Systems

Filtration is also important in that it keeps fluids like water, chemicals and gasses clean and pure form of contaminants. The filtration process removes unwanted particles from fluids or gasses so that a pure end product is obtained. Most industries use and benefit from filtration systems, but some of the most common applications are medical, pharmaceutical, and dental vacuum, and compressed air systems; oil mist elimination from the exhaust or discharge of vacuum pumps; the food and beverage industry.

blog__img

Cartridge Filter

A cartridge filter is a piece of tubular filtration equipment that can be used across various industries for an array of filtration requirements. A cartridge is encased within a housing or a casing and used to remove unwanted particles, pollutants, and chemicals from liquids.

Size 1/2 Inch to 24 Micron
Automation Grade Manual
Temperature Range 350 Deg C
Finishing Powder Coated
Usage/Application Industrial
Material M.S.,MSRL,SS304,SS316,Duplex2205,FRP

Candle filter

Candle Filters are made up of equal-diameter pipes. The candle is covered with filter hose in polypropylene, polyester and nylon. The number of candles depends on the filtration area of the filter. Under the pressure filtration takes place

Material SS, SS 304 and SS 316
Mesh Size 2 Microns to 500 Microns
Size 2'' to 26''
Usage/Application Industrial

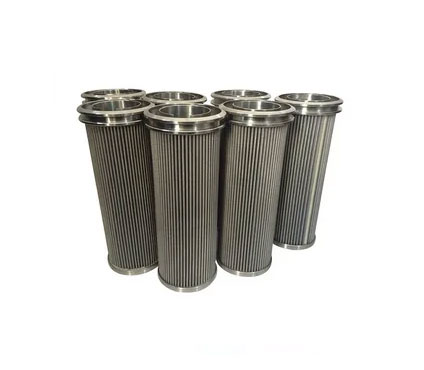

Pleated Filter

Filters manufacture high-quality Pleated filter housings. It has a high dust holding capacity. It has a single open-ended structure with an inside to outside flow pattern. We have Single Pleated and multiple Pleated Housings and our housings are compatible with mostly available Pleated Filter.

Usage/Application Industrial
Size 1/2'' to 60''
Micron Rating 3-20 m
Class 150# & 300#
Material M.S., MSRL, SS304, SS316, Duplex 2205, FRP

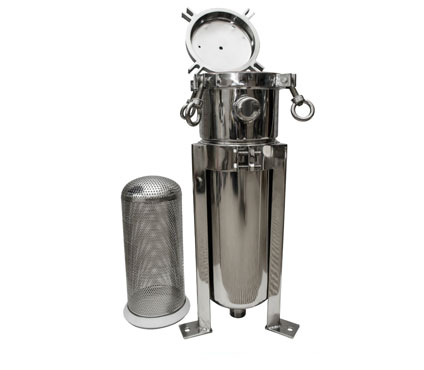

Bag Filter Housing

Filters Bag filter system is designed for optimum filtration. With a high flow rate, it has a high dirt holding capacity as well. It can filter large volumes of high viscosity fluid. Bag filter is constructed of the filter housing, filter bags, internal cage to support bags.

Size 1/2'' to 24''
Micron Rating 1 Micron to 500 Micron
Material M.S., MSRL, SS304, SS316, Duplex 2205, FRP
Class 150# & 300#

Coalescer Filter

Coalescing Filtration is used for the separation of two ‘phases’, for example, the removal of water aerosols and droplets from gas. Tiny liquid droplets are brought together into larger droplets as air flows through the element's fibre matrix, and they eventually become large enough to be drained away.

Size 1/2'' to 26''
Mesh Size 2 Microns to 500 Microns
Material CS, CI, MS, SS304, SS316 with other alloy on request

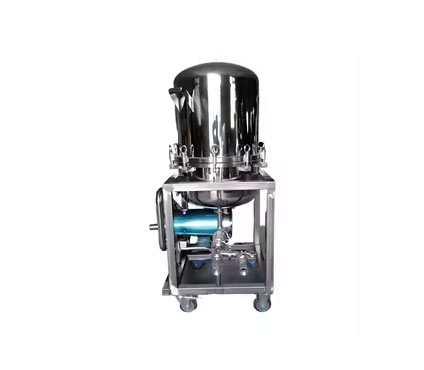

Sparkler Filter

Sparkler filters, redefine filtration through compactness, ease of operation and robust engineering. Various nominal diameters are available 8, 14, 18, 24, 33 Inches with a surface area ranging from 0.1 - 10 m2. In this the Liquid is pumped through the central channel of the cartridge from the bottom of the body.

Material SS316/SS316L/SS304*/Hastelloy/HALAR/PP/ETFE/PVDF/PFA for corrosive liquid
Max. Operating Pressure 7 kg/cm 2**
Max Operating Temperature 1500C (3020F)**
Elastomer Silicon/PTFE/EPDM/Viton*

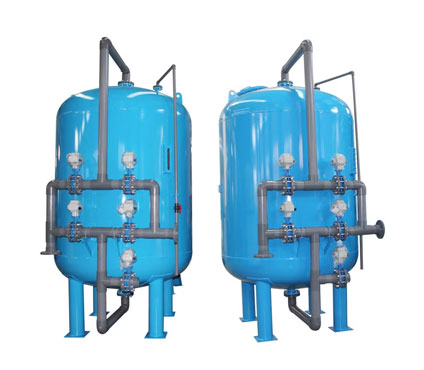

Sand Filter

Sand Filters are highly recommended for the removal of suspended solids & undisclosed impurities like dust particles & heavy metals etc. The sand filter is an ideal solution for the system with high sediment, silt, sand and turbidity.

Usage/Application Industrial
Flow Rate Depends on the requirement
Material Depends on the requirement

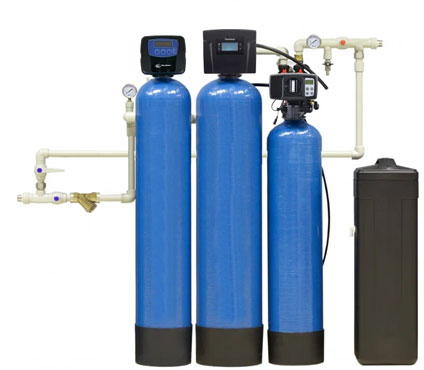

Carbon Filter

Carbon filters play a crucial role in the process of water purification as they remove all the unwanted chemicals and organic compounds like chlorine, pesticides, and other Volatile Organic Compounds (VOCs) that may be present in the water.

Usage/Application Industrial
Weight of Filtering Material 1200 kg
Filtration Capacity 40 T/H
Inlet and Outlet Diameter 200 mm
