Hydraulic & Tube Fittings
Hydraulic fittings come in a wide range of types and applications. They are used to connect the hydraulic hose to components like hydraulic cylinders, pipes, tubes, or different types of hydraulic hoses in hydraulic systems.
The different types of hydraulic fittings allow the fluid to flow, change its direction, divert, or mix. These fittings should be capable of creating a tight seal and preventing leakage in the application. These fittings are widely used in hydraulic-powered applications including plumbing, robotics, assembly lines, and heavy equipment.

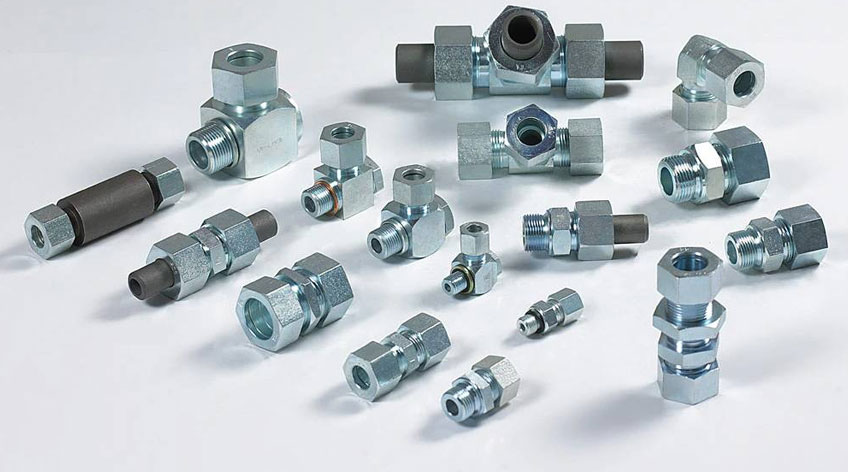

Hydraulic Fittings
| Manufacturing Standard | As Per DIN 2353/EN ISO 8434-1 Standard |
| Material | Carbon Steel, Stainless Steel, Stainless Steel 304, Stainless Steel 304L, Stainless Steel 316, Stainless Steel 316L, Stainless Steel 316Ti, Stainless Steel 310, Brass, Copper, Duplex, Super Duplex, Inconel, Monel, Hastelloy, 254 SMO, 904L, Titanium, Cupro Nickel |
| Series | Very Light (LL) Series, Light (L) Series, Heavy (S) Series |
| Size | LL Series-4LL,6LL,8LL, 10LL, 12 LL. L Series-6L, 8L, 10L, 12L,15L, 18L, 22L, 28L, 35L, 42L. S Series-6S, 8S, 10S, 12S, 16S, 20S, 25S, 30S, 38S. |
| Pressure | LL Series Up to 100 bar L Series Up to 500 bar S Series Up to 800 bar |
| Other NON Standard sizes we offer | 1/4" NB, 3/8" NB, 1⁄2" NB, 4" NB, 1" NB, 1/4" NB, 1 1⁄2" NB & 2" NB. |
| End Correction | BSP, BSPT, NPT, UNF, Metric |
| Cone Type | 24 Degree Cone |
| Coating and Surface Treament | Trivalent Zinc, Yellow Passivation, Black Phosphatized, Crome VI Free Plating. Nickel Plating, Cadmium Plating, Stainless Steel Bright Finish, Electro Plating and any other Custom plating as per customers requirement. |
Tube Fittings
| Size | 4 mm OD To 38 mm OD 1/8" OD To 1 1/2" OD |
| Pressure | 100 Psi To 6000 Psi |
| Other NON Standard sizes we offer | 1/4" NB, 3/8" NB, 21⁄2" NB, 4" NB, 1" NB, 1/4" NB, 11⁄2" NB & 2" NB. |
| Material | Stainless Steel, Stainless Steel 304, Stainless Steel 304L, Stainless Steel 316, Stainless Steel 316L, Stainless Steel 316Ti, Stainless Steel 310, Brass, Copper, Duplex, Super Duplex, Inconel, Monel, Hastelloy, 254 SMO, 904L, Titanium, Cupro Nickel, PTFE |
| End Correction | BSP, BSPT, NPT, UNF, Metric |
| Coating Surface and Treatment | Stainless Steel Bright Finish, Electro Plating and any other Custom plating as per customers requirement. Nut will be Silver Plated |
